High Strength Cutting Robot 7 Axis With Adjustable Floor Mounting Elements

Brand Name : TJ

Model Number : TJS XX SXXX VXX AXX LX EX X

Certification : ISO9001:2008,ISO14001:2004

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T,30% payment in advance,70% before delivery

Supply Ability : 10 pcs per month

Delivery Time : 6~8 weeks

Packaging Details : non wooden box

repeatability : ±0.1mm

velocity : ≤3m/s

load : ≤6t

accelertaion : ≤5m/s²

stroke : ≤70m

lubricating system : manual/automatic

dustproof modes : sheet metal cover/organ cover

drag chain material : engineering plastics/steel/stainless steel

Contact Now

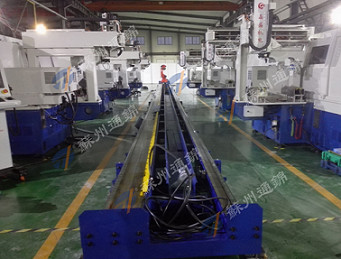

7th axis flexible to install, high precision robot rail used for cutting

About 7^th axis

The new robot 7^th-axis(robot rail) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.

Features and benefits

1. Customized travel. According to the customer requirement the 7^th axis can be extended to 70 m.

2. Flexible installation, high precision. The 7^th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.

3. High safety. We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.

4.Environmental Protection.On 7^th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.

Model definition

①TJS ②05 ③S040 ④V08 ⑤A08 ⑥L1 ⑦E1 ⑧2

①TJ 7^th - Axis Robot

③Stroke

S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.

⑤Acceleration

A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²

⑦Dustproof modes

E1:sheet metal cover

E2:organ cover

E3:others

②Load

0.8:800kg

15:1.5t

30:3t

④Speed

V08:0.8m/s

A10:1m/s

Select any value within 3m/s.

⑥Lubricating system

L1:manual

L2:automatic

L3:others

⑧Drag chain

1:engineering plastics

2:steel

3:stainless steel

4:others

Length configurations

single length is 7m, travel is 6m
some differences for different articulate robot

Options/Accessories:

★Control system related to motion

★Dustproof components:

(1)organ shield

(2)Sheet metal guard

★GAMBINI lubrication unit for gears and racks

★Automatic centralized lubrication system for guide rails

★Segment-based travel switch

★High-precision displacement grating scale
